Questions and Answers
Recent Questions
Guest
•

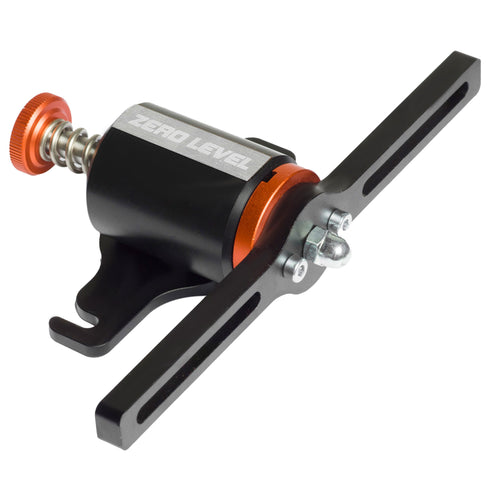

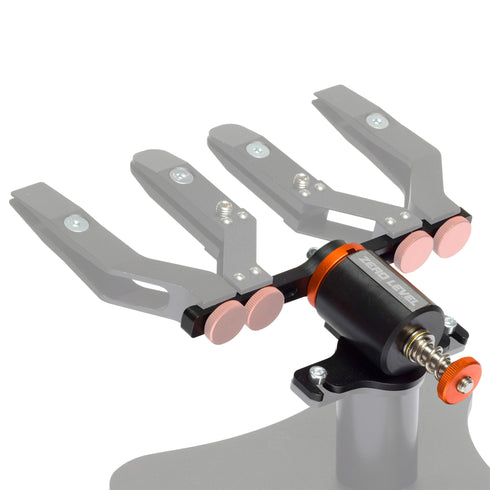

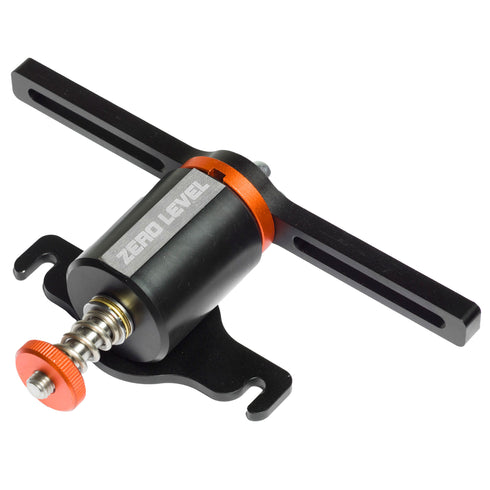

I am trying to figure out what is adjustable on this rotating module. Sounds like the two Allen screws on either side of the center hex nut are used to level the bar and the big thumb screw on the back adjusts how much resistance there is when rotating the knife.
What does the vertical screw in the bottom front of the unit near the clamp do?
Does the center hex nut adjust anything?
What does the vertical screw in the bottom front of the unit near the clamp do?
Does the center hex nut adjust anything?
⚙️Leading Edge
•
Q - I am trying to figure out what is adjustable on this rotating module. Sounds like the two Allen screws on either side of the center hex nut are used to level the bar and the big thumb screw on the back adjusts how much resistance there is when rotating the knife.
What does the vertical screw in the bottom front of the unit near the clamp do?
Does the center hex nut adjust anything?
A - Yes, the two allen screws can be loosened to adjust the leveling of the rotating bar. The vertical screw in the bottom front is a screw that holds the bearing on which the rotating clamp bar moves. The center hex nut is merely the front of the threaded bar that passes through to the rear spring tension adjuster.
What does the vertical screw in the bottom front of the unit near the clamp do?
Does the center hex nut adjust anything?
A - Yes, the two allen screws can be loosened to adjust the leveling of the rotating bar. The vertical screw in the bottom front is a screw that holds the bearing on which the rotating clamp bar moves. The center hex nut is merely the front of the threaded bar that passes through to the rear spring tension adjuster.
reemas
•
My clamps are a few mm off from each other.
⚙️Leading Edge
•
• Voted Best Answer
Very slightly loosen the allen head 2 screws on both sides of the centre hex nut. (These should be 3mm allex screws.)
Take your digital angle cube, zero it on the table your Hapstone is standing on (zero the angle cube parallel with the clamp bar). Now place the angle cube on one side of the clamp bar, then the other side. Compare both sides and adjust it up or down until they are exactly the same. Now carefully tighten both 3mm allen head screws again, making sure not to mis-align the clamp bar again while tightening.
Hope this helps!
Take your digital angle cube, zero it on the table your Hapstone is standing on (zero the angle cube parallel with the clamp bar). Now place the angle cube on one side of the clamp bar, then the other side. Compare both sides and adjust it up or down until they are exactly the same. Now carefully tighten both 3mm allen head screws again, making sure not to mis-align the clamp bar again while tightening.
Hope this helps!
reemas
•
Thanks! Love the support on this site. Quick and thorough responses every time.
